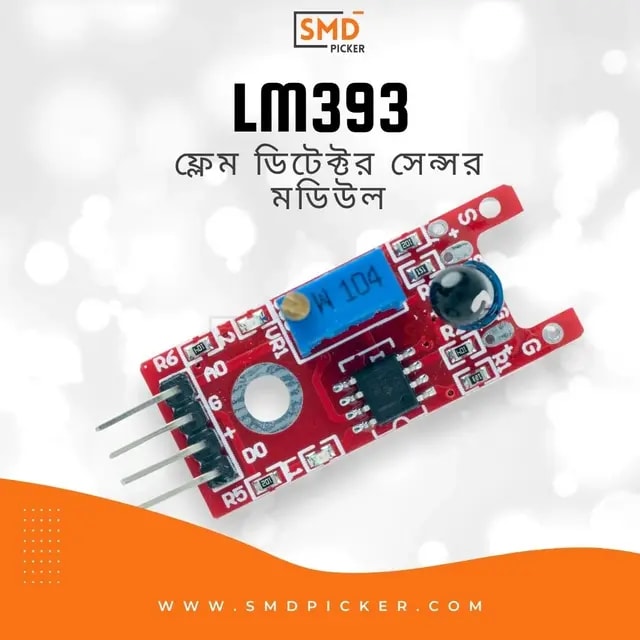

LM393 FLAME DETECTOR SENSOR MODULE

An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output and sensitivity can be adjusted via the blue potentiometer. This Flame Sensor Module is used to detect fire/flame source or other light sources of the wavelength in the range of 760nm – 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. The sensor can be a great addition in a firefighting robot, it can be used as a robot eyes to find the fire source. When the sensor detects flame the Signal LED will light up and the D0 pin goes LOW. The module has 2 outputs: Analogue, which gives a real-time voltage output signal on thermal resistance, and digital which allows temperature thresholds to be set via a potentiometer. Specifications: High sensitivity IR receiver Extremely sensitive to wave between 760-1100nm Power supply indicator lamp Comparator output indicator lamp AO, real-time thermister voltage signal output DO, high / low electric level signal output Analog quantity output Threshold rollover electric level output Threshold adjusted by potentiometer Detection Angle Range: About 60 degrees Power Supply: 0-15 V DC Hole Inner Diameter: Approx. 3mm Size (L x W): Approx. 36 x 16mm
