Raspberry Pi 4B -4gb
| Manufacturer: | Raspberry |
| SKU: | DEVC-1457 |
Standard delivery: 3-5 business days
Specifications
| Manufacturer | Raspberry |
| bluetooth | 5.0, Yes |
| brand | Raspberry |
| connectivity | Gigabit Ethernet, 5.0 GHz WLAN, 2.4 GHz WLAN, GPIO, USB 3.0, USB 2.0 |
| cpu-frequency | 1.5GHz |
| gigabit-ethernet-port | Yes, Gigabit Ethernet |
| hdmi | 4K, 2 micro HDMI Ports |
| on-board-ram | 4GB |
| operating-voltage-range | 5V @ 3A |
| processor | Cortex-A72, Broadcom BCM2711 |
| processor-architecture | ARM-8 |
| processor-bit-rate | 64-bit |
| processor-core-count | Quad-core, 4 |
| usb | USB 3.0 x 2, USB 2.0 x 2 |

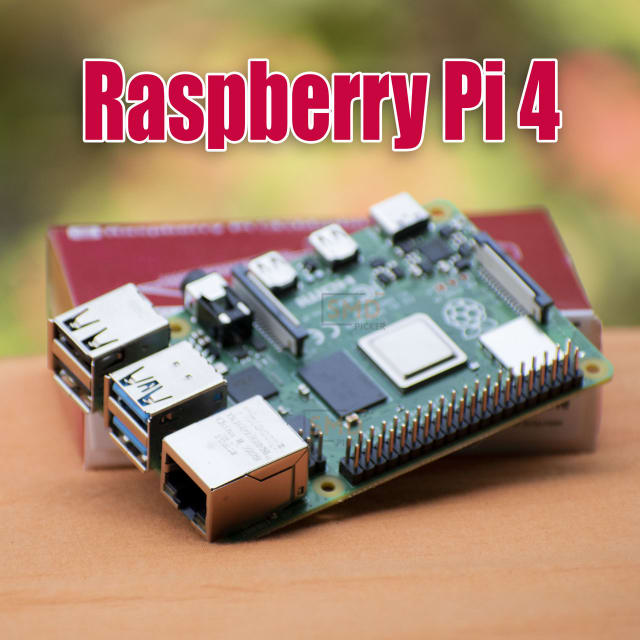

Raspberry Pi 4 Model B
The Raspberry Pi 4 Model B is more than just a single-board computer; it's a catalyst for creativity and learning. Whether you're an educator looking to inspire the next generation of tech enthusiasts, a hobbyist eager to tinker with new projects, or a professional seeking an affordable solution for your tech needs, the Raspberry Pi 4 B offers endless possibilities. Its impact on technology education and the maker community is profound, ensuring it remains a beloved and essential tool for years to come.Pinout:Raspberry Pi 4B-4GB
5V
2
5V
4
GND
6
UART TXGPIO14
8
UART RXGPIO15
10
PWM0GPIO18
12
GND
14
GPIO23
16
GPIO24
18
GND
20
GPIO25
22
SPI CE0GPIO8
24
SPI CE1GPIO7
26
EEPROM SCLGPIO1
28
GND
30
PWM0GPIO12
32
GND
34
SPI CE0GPIO16
36
PCM DINGPIO20
38
PCM DOUTGPIO21
40
1
3.3V
3
GPIO2I2C SDA
5
GPIO3I2C SCL
7
GPIO4GPCLK0
9
GND
11
GPIO17SPI CE1
13
GPIO27
15
GPIO22
17
3.3V
19
GPIO10SPI MOSI
21
GPIO9SPI MISO
23
GPIO11SPI CLK
25
GND
27
GPIO0EEPROM SDA
29
GPIO5
31
GPIO6
33
GPIO13PWM1
35
GPIO19PCM FS
37
GPIO26
39
GND
Micro SD Slot
EtharNet Port
5V3.3VGNDGPIOI2CUARTSPIID / EEPROMPWMPCM
