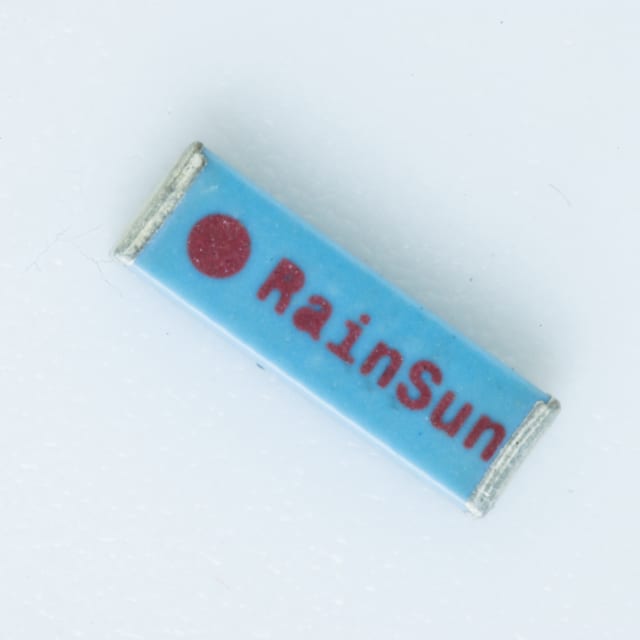

SMD Chip Antenna AN6520-245
| Manufacturer: | Rainsun microwave Tech |
| Part Number: | AN6520-245 |
| SKU: | S10696 |
Standard delivery: 3-5 business days
Specifications
| Manufacturer | Rainsun microwave Tech |
| Manufacturer Part No. | AN6520-245 |
| antenna-type | Chip Antenna, Ceramic |
| bandwidth | 200MHz |
| brand | Rainsun microwave Tech |
| central-frequency | 2.45GHz, 2450MHz |
| easyeda-id | C239238 |
| impedance | 50Ω |
| manufacturer-part-number | AN6520-245 |
| mounting | SMD/SMT |
| peak-gain | 0.5dBi |
| power | 3W |
Pin configuration
| Pin No | Description |
|---|---|
| 1 | Feed Terminal |
| 2 | Feed point mark |
| 3 | Solder termination |
