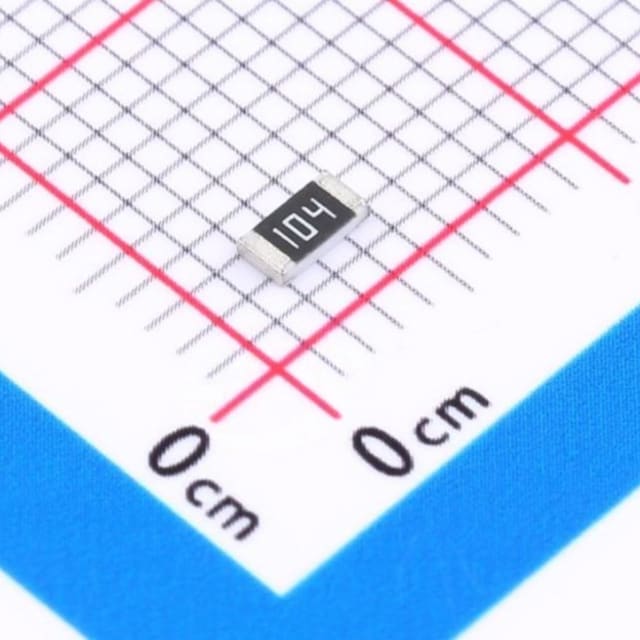

SMD resistor 100kΩ 1206 250mW FRC1206J104 TS
| Manufacturer: | FOJAN |
| Part Number: | FRC1206J104 TS |
| SKU: | RC-1206-21629 |
Standard delivery: 3-5 business days
Specifications
| Manufacturer | FOJAN |
| Manufacturer Part No. | FRC1206J104 TS |
| brand | FOJAN |
| easyeda-id | C2907421 |
| height | 0.55±0.10 mm |
| length | 3.10±0.10 mm |
| manufacturer-part-number | FRC1206J104 TS |
| mounting | SMD/SMT |
| operating-temperature | -55℃~+155℃ |
| package-size | 1206 |
| power-dissipation | 250mW |
| rated-voltage | 200v |
| resistance | 100 KΩ |
| temperature-coefficient | ±100ppm/℃ |
| tolerance | ±5% |
| width | 1.60±0.10 mm |
FRC1206J104 TS 100kΩ 1206 SMD Chip Resistor
100kΩ ±5% 250mW 1206 Thick Film Resistor
Electrical Characteristics
Parameter | Rating | Unit |
|---|---|---|
Rated Power at 70°C | 1/4 (0.25) | W |
Max Working Voltage | 200 | V |
Max Overload Voltage | 400 | |
Dielectric Withstanding Voltage | 500 | |
Temperature Coefficient (TCR) | ±100 (for 10Ω ≤ R < 1MΩ) | ppm/°C |
Operating Temperature Range | -55 to +155 | °C |
Insulation Resistance | >10G | Ω |
